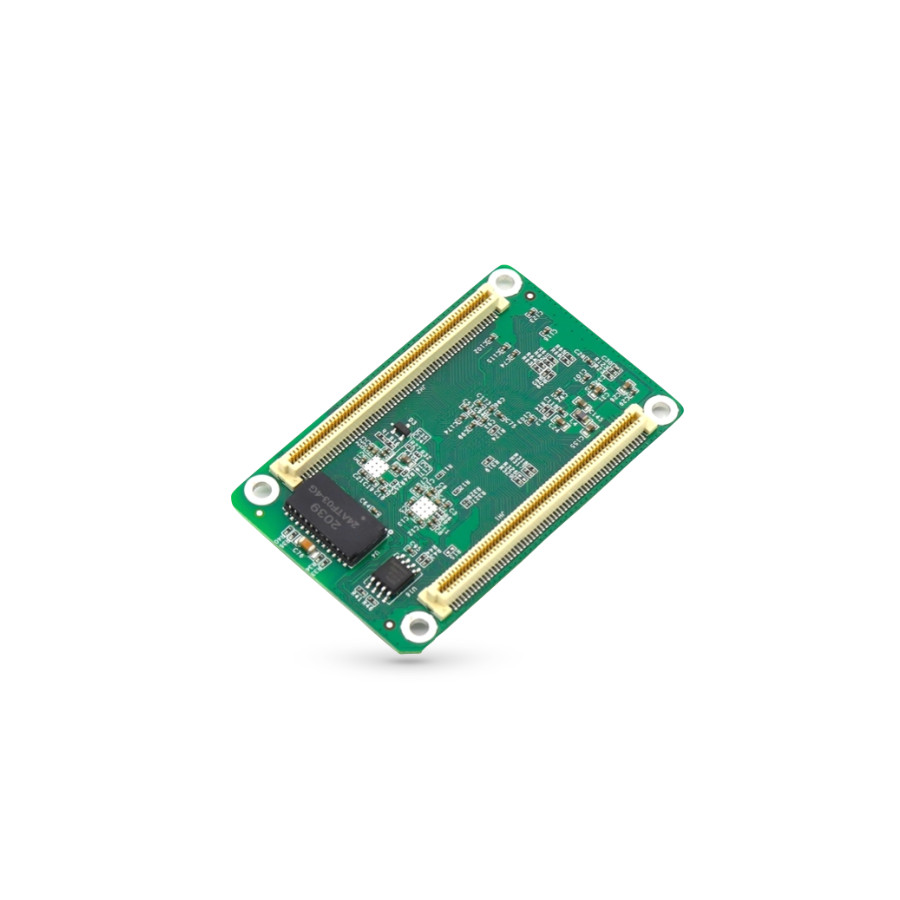

Novastar A10s Pro LED Display Receiving Card

DescriptionThe A10s Pro is a high-end small receiving card designed for sophisticated LED display systems that need exceptional picture quality and reliable operation. The A10s Pro can handle up to 512×512@60Hz, which is great for high-resolution modules that demand precise control and quick data transfer. The goal was to make it use less power while still making the contrast, grayscale smoothness, and color constancy better overall.The A10s Pro uses Dynamic Booster technology to help photographs seem better by making the contrast deeper and the image quality finer. It also decides how much power the display needs. Full-Grayscale Calibration gives each level of grayscale its own set of correction settings. This makes sure that the brightness and color are the same in both bright and gloomy places. The Image Booster changes color gamuts, improves 16-bit grayscale (65,536 levels), and improves 22bit , which makes grayscale depth 64 times deeper and maintains more information in dark areas.Pixel-level brightness and chroma correction makes sure that LEDs look the same, and rapid dark or bright line adjustment addresses seam issues between modules or cabinets. Using the correct driver ICs with built-in RAM may reduce lag to as little as one frame when processing is done quickly. HDR10 and HLG decoding operate when used with the suitable transmitting devices. This provides you an accurate range of brightness and color reproduction.Because it offers dual card redundancy, loop backup, dual firmware storage, dual parameter backup, and dual calibration storage, the A10s Pro is very dependable. You don’t need any other gear since it has built-in temperature and voltage monitoring. It can also handle up to 128 sets of serial data. Hardware that meets EMC Class B criteria is more stable in situations where it is hard to install.The input voltage may be anywhere from 3.3 V to 5.5 V, the rated current is 0.5 A, and the typical power utilization is 2.5 W. It can work in temperatures from -20°C to 70°C and humidity levels from 10% RH to 90% RH without condensation. It weighs 22.8 g and is 80.0 mm long, 45.0 mm wide, and 8.0 mm thick.Help with data and inputIt can handle up to 512×512 at 60Hz.It can handle 32 sets of RGB data at once.Can handle 64 sets of serial data.Can be made bigger to accommodate 128 sets of serial data.It can transmit LVDS signals, but it requires special firmware to do so.Display Enhancement FeaturesDynamic Boosters that make contrast better and full-grayscale calibration that works with HDR10 and HLG.Image Booster can control colors and correct the accuracy of 16-bit grayscale images.At least 22 bits of grayscale expansion.Change the brightness of each pixel.Setting the chroma at the pixel levelQuick technique to switch between dark and light lines.Processing with little delay (up to one frame)Support for 3D output.Changing the red gamma by itself.Changing the green gamma on its own.Changing blue gamma on its ownYou may turn the picture by 0°, 90°, 180°, or 270°.Free-angle rotation with systems that can handle it.Watching and reliabilityTwo receiving cards that are redundantSupport for backups in loops.Two places to store firmware programs.Two copies of configuration settings are saved.Copy of the dual calibration coefficientKeeping an eye on the temperature on boardKeeping an eye on the voltage on board.Finding mistakes in bitsFinding two power suppliesElectricity requirements:Input voltage: 3.3 to 5.5 volts DCCurrent rating: 0.5APower: 2.5 watts.Operating safety:The temperature range for work is between -20 and 70 degrees Celsius.The humidity in the office should be between 10% and 90% RH and not too high.Place to StoreThe temperature range for storage is from -25°C to 125°C.Storage humidity: 0% to 95% RH, no condensation.Body detailsSize: 8.0 mm × 45.0 mm × 80.0 mmIt weighs 22.8 grams.
