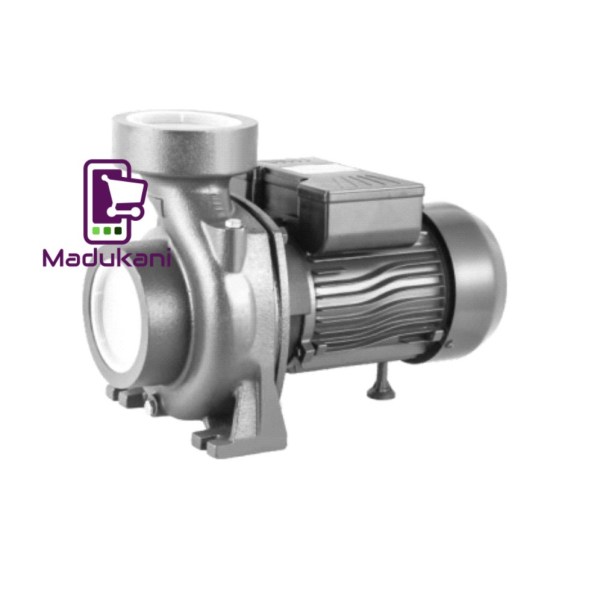

Dayliff DHF200 Centrifugal Non Self Priming Closed Impeller Pump

Description – The Dayliff DHF series is a centrifugal non self priming closed impeller pump specially designed for high flow commercial and industrial water supply uses in water boosting and transfer applications. – The pump body is cast iron with a brass impeller. – Pumps are close coupled to reliable TEFC electric motors designed for continuous operation and are provided with a thermal cut out to protect against electrical overload. Single phase pumps can be connected directly to the mains power supply through a 10A fuse or MCB while three phase models require a remote DOL starter according to the local regulations. – Enclosure Class: IP44. – Insulation Class: F. – Speed: 2900rpm – Pumped Liquids: Thin, clean, chemically non-aggressive liquids with max. sand content of 0.25% – Max. Fluid Temperature: 40º C – Max. Ambient Temperature: 40º C – Max. Suction Lift: 7m at sea level – Motor: 1.5kW – DN1(“): 1×240 – DN2(“): 9.8 – Dimensions(mm): 207 x 259 x 369mm – Weight(kg): 19 – Voltage(V): 240V single phase – Current(A): 9.8
