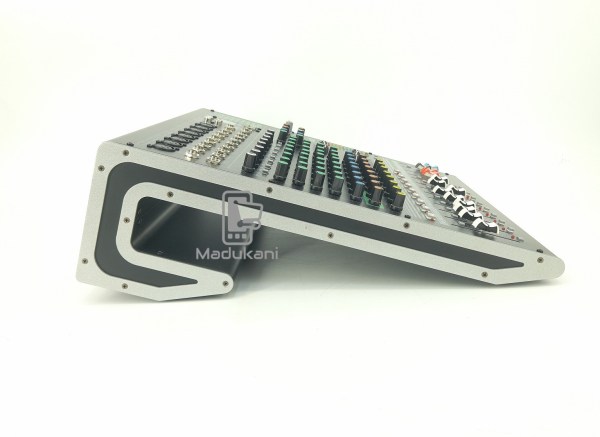

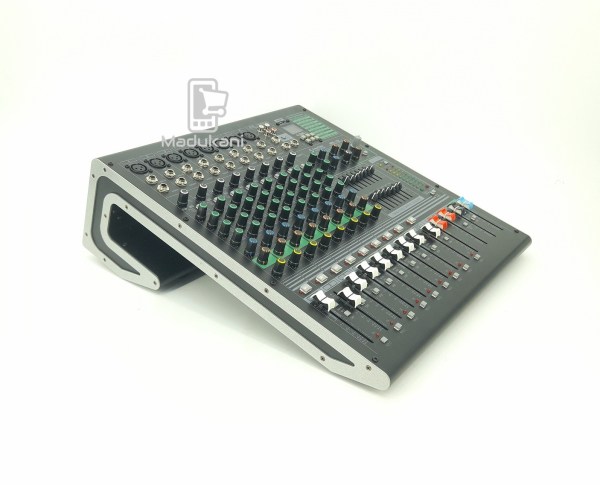

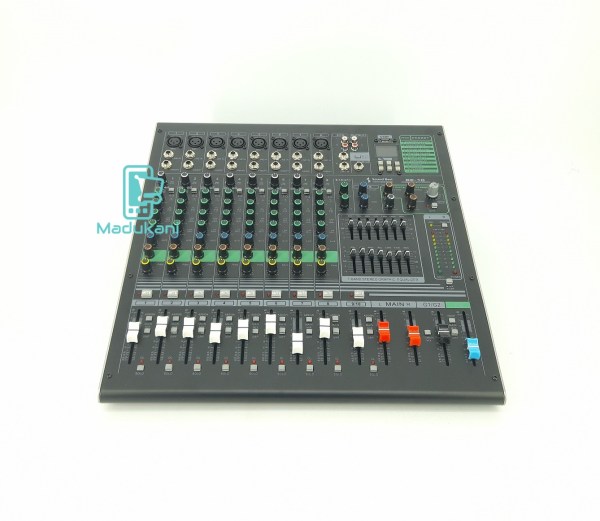

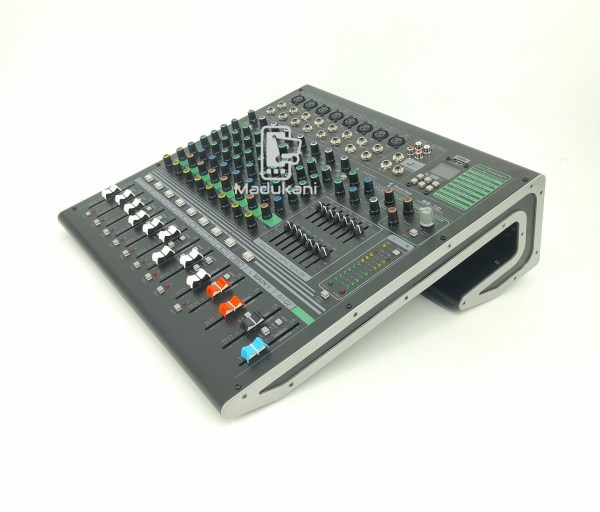

Professional 24 Bit Digital Effects Processor Unpowered 10 Channel Plain Mixer

Description – Built-in Lexicon 24-bit effects – Precision GB30 mic pre-amps – True, professional 48V phantom power for condenser microphones – 2 Group busses – Stereo Mix output – 8, 12 or 20 mono Mic inputs, all with 2 stereo line inputs – Up to 28 inputs to mix – Aux sends, globally switchable pre or post-fade – FX send – Universal internal power supply – Optional rack ears (standard on 12 channel consoles) – Custom Karaoke preset – Frequency Response – Mic / Line Input to any Output /-1.5dB, 20Hz – 20kHz – T.H.D. – Mic Sensitivity -30dBu, 14dBu @ Mix output < 0.01% @ 1kHz – Mic Input E.I.N. (maximum gain) -126.5dBu (150O source) – Aux, Mix and Masters (@ 0dB, faders down) < -85dBu – Crosstalk (@ 1kHz) – Channel Mute > 96dB – Crosstalk (@ 1kHz) – Aux Send Pots Offness > 86dB – EQ (Mono Inputs) – HF 12kHz, /-15dB – EQ (Mono Inputs) – MF (swept) 150Hz – 3.5kHz, /-15dB – EQ (Mono Inputs) – LF 80Hz, /-15dB – EQ (Mono Inputs) – Q 1.5 – EQ (Stereo Inputs) – HF 12kHz, /-15dB – EQ (Stereo Inputs) – MF 720Hz, /-15dB – EQ (Stereo Inputs) – LF 80Hz, /-15dB – Power Consumption Less than 40W – Temperature Range 5°C to 40°C – Input & Output Levels – Mic Inputs 15dBu max. – Input & Output Levels – Line Inputs 30dBu max. – Input & Output Levels – Stereo Input 30dBu max. – Input & Output Levels – Mix Output 20dBu max. – Input & Output Levels – Headphones (@1500) 300mW – Input & Output Levels – Recommended headphones impedance 32 – 200O – Input & Output Impedances – Mic Inputs 2kO – Input & Output Impedances – Line Input 10kO – Input & Output Impedances – Stereo Input 45kO – Input & Output Impedances – Outputs 150kO (balanced), 75O (unbalanced)
